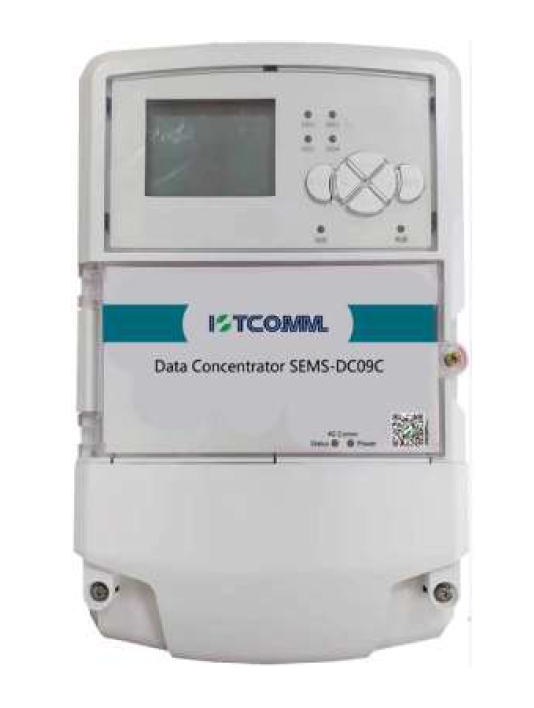

Data Concentrator
-Data concentrator is a device communicate between Terminal
Controller and Server
-Web-based software allows remote configuration, monitoring,
control, reporting, alarm, data and update, self-running based on
astronomical calendar.
-PLC+RF433 Dual mode communication
-LCD display
-AC input 90-400V, 50/60 Hz, switch capacity max. 16 A
-Port: 2G/3G/4G、 Ethernet, RS232, RS485
-IO Ports: 4 Digital Outputs (16A/250V relay for breaker on/off), 6
Digital Inputs (internal 24V dry contact), 1 AI Input
-Operating conditions: -35°C to +75°C , 5%-95%Rh non-condensing;
IP51
-Product size(L*W*H): 290×180×95mm
Model: SEMS-DC09C
CE, ROHS, BIS, DLC, ETL, TUV
